WAVEGUIDE-TAPER-TRANSITION
Base Product

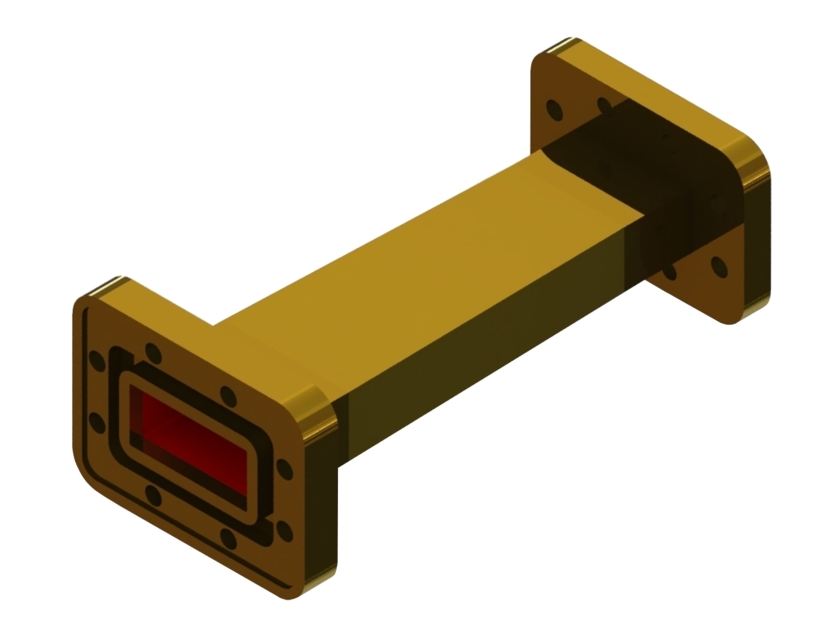

Taper Transition Waveguide
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
CommScope offers a complete selection of microwave connectivity accessories to optimize your backhaul installation and performance.
Taper transition waveguide components are built with a rectangular cross section and are used as a final assembly point in the equipment rooms, connecting to the radios.
Taper transition waveguide components are built with a rectangular cross section and are used as a final assembly point in the equipment rooms, connecting to the radios.
Specifications
Product Classification
| Product Type | Rectangular waveguide, taper transition |
General Specifications
| Interface | CPR112G | PBR120 | PDR84 | UBR120 |
| Interface 2 | CPR90G | PDR100 | PDR70 |
Dimensions
| Length | 152 mm | 5.984 in |
| Waveguide Size | WR112–WR137 |WG15–WG14 | R84–R70 | WR75–WR90 | WG17–WG16 | R120–R100 |
Electrical Specifications
| Operating Frequency Band | 10.0 – 12.4 GHz | 7.05 – 8.2 GHz |
Material Specifications
| Finish | Gray |
Product Classification
| Product Type | Rectangular waveguide, taper transition |
General Specifications
| Interface | CPR112G | PBR120 | PDR84 | UBR120 |
| Interface 2 | CPR90G | PDR100 | PDR70 |
Dimensions
| Length | 152 mm | 5.984 in |
| Waveguide Size | WR112–WR137 |WG15–WG14 | R84–R70 | WR75–WR90 | WG17–WG16 | R120–R100 |
Electrical Specifications
| Operating Frequency Band | 10.0 – 12.4 GHz | 7.05 – 8.2 GHz |
Material Specifications
| Finish | Gray |
