WAVEGUIDE-STRAIGHT-SECTION
Base Product

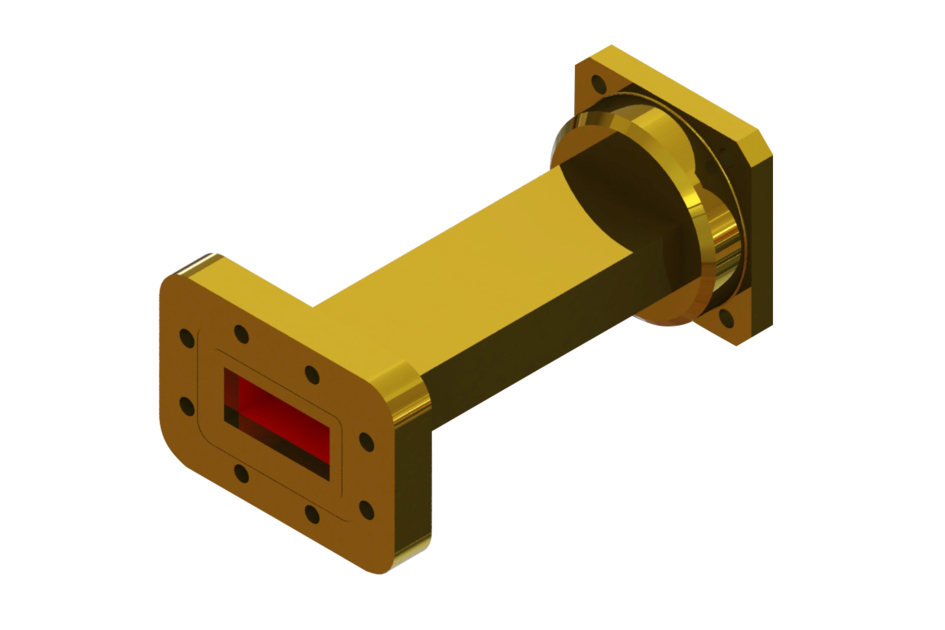

Straight Section Waveguide
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
CommScope offers a complete selection of microwave connectivity accessories to optimize your backhaul installation and performance.
Straight section waveguide components are built with a rectangular cross section and are used as a final assembly point in the equipment rooms, connecting to the radios.
Straight section waveguide components are built with a rectangular cross section and are used as a final assembly point in the equipment rooms, connecting to the radios.
Specifications
Product Classification
| Product Type | Rectangular waveguide, straight section |
General Specifications
| Interface | CPR112G | CPR137G | CPR90G | PBR84 | PDR100 | PDR84 |
| Interface 2 | PBR100 | PBR84 | PDR100 | PDR70 | PDR84 | UBR100 | UBR84 |
Dimensions
| Length | 102 mm | 4.016 in |
| Waveguide Size | WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR90 | WG16 | R100 |
Electrical Specifications
| Operating Frequency Band | 5.85 – 8.2 GHz | 7.05 – 10.0 GHz | 8.2 – 12.4 GHz |
Material Specifications
| Finish | Gray |
Product Classification
| Product Type | Rectangular waveguide, straight section |
General Specifications
| Interface | CPR112G | CPR137G | CPR90G | PBR84 | PDR100 | PDR84 |
| Interface 2 | PBR100 | PBR84 | PDR100 | PDR70 | PDR84 | UBR100 | UBR84 |
Dimensions
| Length | 102 mm | 4.016 in |
| Waveguide Size | WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR90 | WG16 | R100 |
Electrical Specifications
| Operating Frequency Band | 5.85 – 8.2 GHz | 7.05 – 10.0 GHz | 8.2 – 12.4 GHz |
Material Specifications
| Finish | Gray |
