WAVEGUIDE-COAX-TRANSITION
Base Product

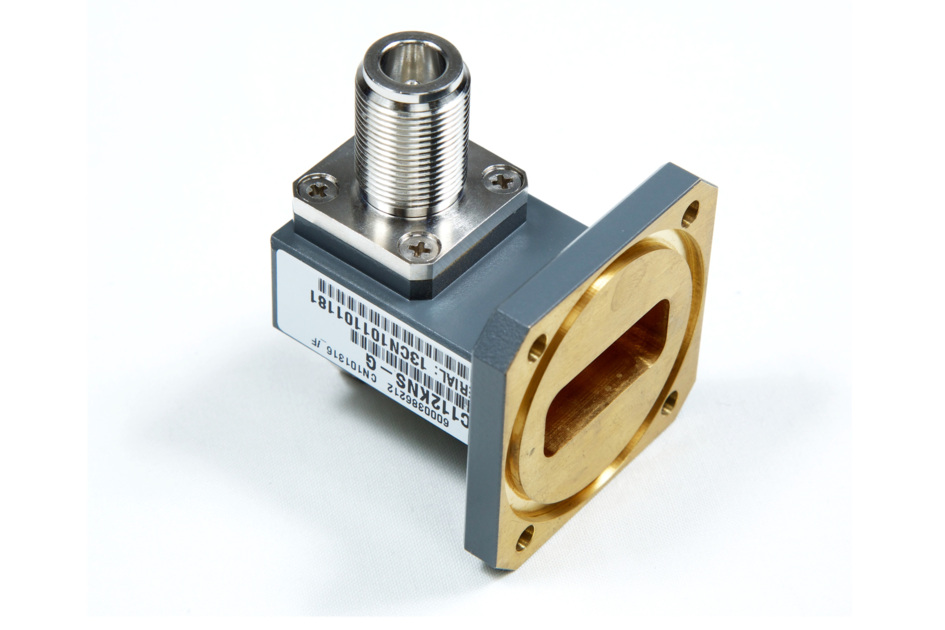

Waveguide/Coaxial Cable Transition
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
CommScope offers a complete selection of microwave connectivity accessories to optimize your backhaul installation and performance.
Waveguide-to-coaxial cable transitions are used to connect a rectangular waveguide interface to a coaxial cable flange interface.
Waveguide-to-coaxial cable transitions are used to connect a rectangular waveguide interface to a coaxial cable flange interface.
Specifications
Product Classification
Product Type | Waveguide/Coaxial Cable Transition |
General Specifications
Interface | N Female |
Interface 2 | CPR112G | CPR137G | CPR187G | CPR90G | PBR100 | PBR84 | PDR100 | PDR48 | PDR70 | PDR84 | UBR100 | UBR84 | UDR100 | UDR70 | UDR84 |
Dimensions
Waveguide Size | WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR187 | WG12 | R48 | WR90 | WG16 | R100 |
Electrical Specifications
Operating Frequency Band | 3.95 – 5.85 GHz | 5.85 – 6.425 GHz | 5.85 – 8.2 GHz | 7.05 – 10.0 GHz | 8.2 – 12.4 GHz |
Material Specifications
Finish | Gray |
Product Classification
Product Type | Waveguide/Coaxial Cable Transition |
General Specifications
Interface | N Female |
Interface 2 | CPR112G | CPR137G | CPR187G | CPR90G | PBR100 | PBR84 | PDR100 | PDR48 | PDR70 | PDR84 | UBR100 | UBR84 | UDR100 | UDR70 | UDR84 |
Dimensions
Waveguide Size | WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR187 | WG12 | R48 | WR90 | WG16 | R100 |
Electrical Specifications
Operating Frequency Band | 3.95 – 5.85 GHz | 5.85 – 6.425 GHz | 5.85 – 8.2 GHz | 7.05 – 10.0 GHz | 8.2 – 12.4 GHz |
Material Specifications
Finish | Gray |
Documentation & Downloads
Product Compliance Documentation
Product Specification
Warranty
Product Compliance Documentation
Product Specification
Warranty
