AT-3-43-MF
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

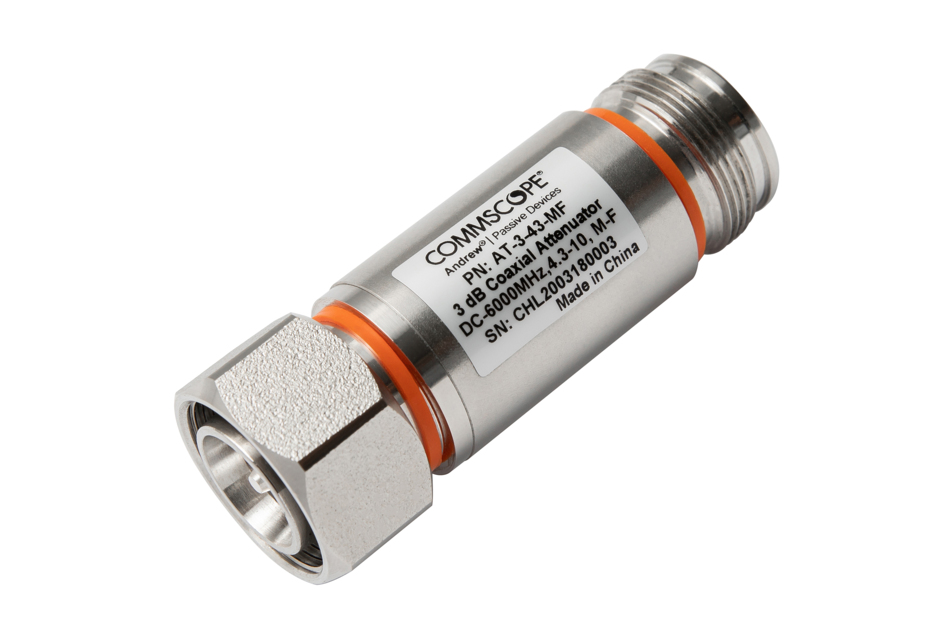

3 dB Coaxial Attenuator DC–6000 4.3-10 M-F
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Attenuator |
General Specifications
| Device Type | Attenuator |
| Application | Indoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Interface 2 | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Electrical Specifications
| Return Loss, minimum | 20.8 dB |
| Attenuation | 3 dB |
| Attenuation Tolerance | ±0.4 dB |
| Average Power, maximum | 2 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| Peak Power, maximum | 0.5 kW |
| VSWR | 1.2 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Attenuator |
General Specifications
| Device Type | Attenuator |
| Application | Indoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Interface 2 | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Electrical Specifications
| Return Loss, minimum | 20.8 dB |
| Attenuation | 3 dB |
| Attenuation Tolerance | ±0.4 dB |
| Average Power, maximum | 2 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| Peak Power, maximum | 0.5 kW |
| VSWR | 1.2 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
