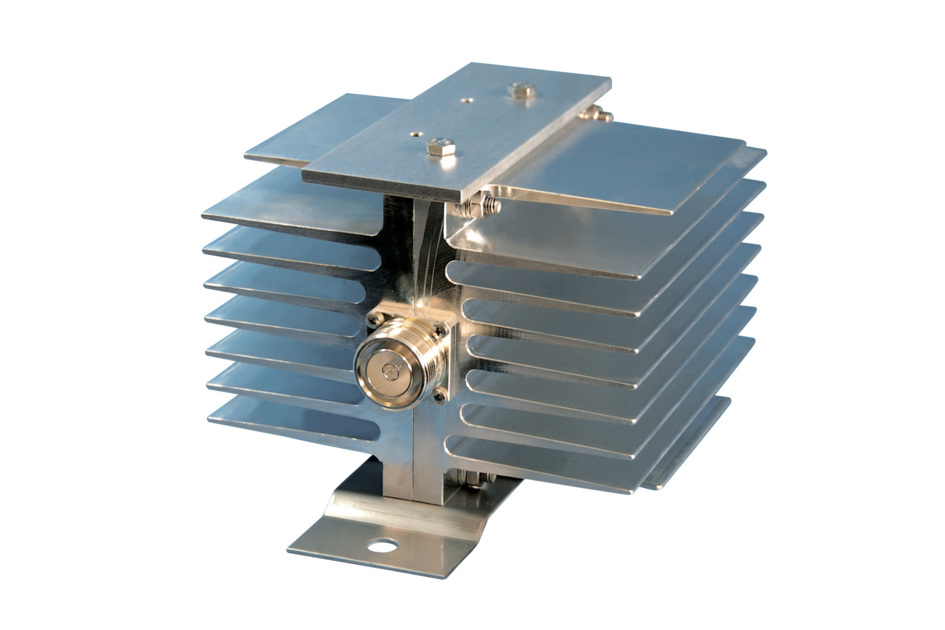

7-16 DIN Female High Power Termination Load, 70–2700 MHz
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
| Color | Silver |
| Interface | 7-16 DIN Female |
Electrical Specifications
| Return Loss, minimum | 20 dB |
| Average Power, maximum | 175 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 70 – 2700 MHz |
| Peak Power, maximum | 2 kW |
| VSWR | 1.22 |
Derating Curve
| Click on image to enlarge. |
Environmental Specifications
| Operating Temperature | -33 °C to +65 °C (-27.4 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP30 |
Packaging and Weights
| Height, packed | 242 mm | 9.528 in |
| Width, packed | 165 mm | 6.496 in |
| Length, packed | 130 mm | 5.118 in |
| Weight, gross | 3.7 kg | 8.157 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
| Color | Silver |
| Interface | 7-16 DIN Female |
Electrical Specifications
| Return Loss, minimum | 20 dB |
| Average Power, maximum | 175 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 70 – 2700 MHz |
| Peak Power, maximum | 2 kW |
| VSWR | 1.22 |
Environmental Specifications
| Operating Temperature | -33 °C to +65 °C (-27.4 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP30 |
Packaging and Weights
| Height, packed | 242 mm | 9.528 in |
| Width, packed | 165 mm | 6.496 in |
| Length, packed | 130 mm | 5.118 in |
| Weight, gross | 3.7 kg | 8.157 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
