NNV4SSP-360S-F2

18-port small cell antenna, 4x 698-896, 8x 1695–2690, 4x 3300- 4200 and 2x 5150-5925 MHz, 360° Horizontal Beamwidth, fixed tilt.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

General Specifications

Antenna Type Omni
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 18

Dimensions

Length 610 mm | 24.016 in
Net Weight, without mounting kit 14.5 kg | 31.967 lb
Outer Diameter 370 mm | 14.567 in

5 GHz Port Power Table

Click on image to enlarge.

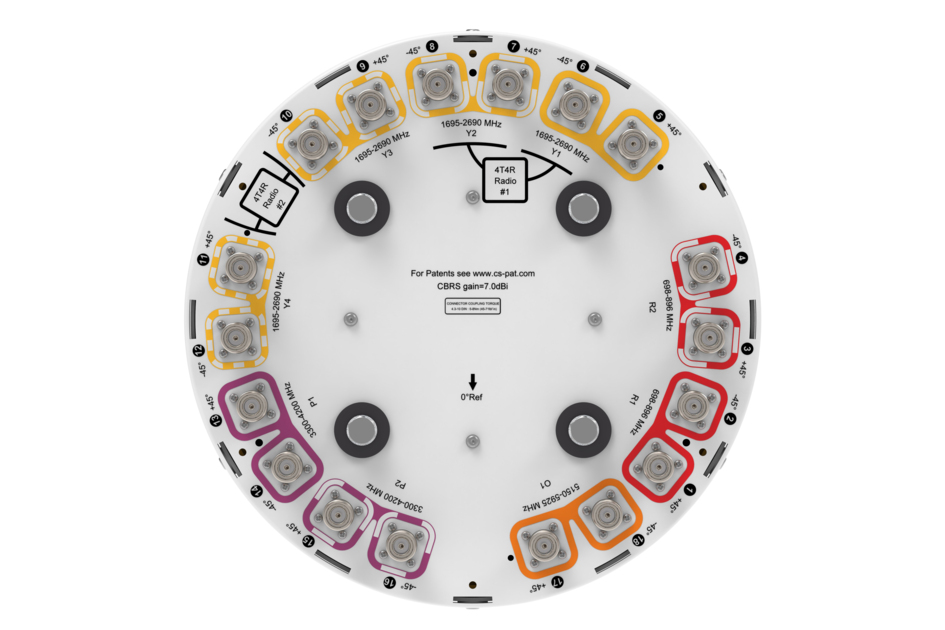

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2690 MHz | 3300 – 4200 MHz | 5150 – 5925 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1920 1920–2180 2300–2360 2360–2690 3300–3550 3550–3700 3700–4200 5150–5925
Gain, dBi 5.0 5.2 7.7 8.0 8.7 9.0 6.7 6.7 6.7 3.9
Beamwidth, Horizontal, degrees 360 360 360 360 360 360 360 360 360 360
Beamwidth, Vertical, degrees 45.9 48.8 23.1 19.2 17.3 15.5 34.5 33.8 28.6 23.3
Beam Tilt, degrees 2 2 2 2 2 2 0 0 0 0
USLS (First Lobe), dB 12 12 10 11 11 11 10 10 10
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port, maximum, watts 150 150 150 150 150 150 125 125 125 10
Input Power per Port at 50°C, maximum, watts 100 100 100 100 100 100 75 75 75 5

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896 1695–1920 1920–2180 2300–2360 2360–2690 3300–3550 3550–3700 3700–4200 5150–5925
Gain by all Beam Tilts, average, dBi 4.6 4.6 7.1 7.6 8.1 8.4 6.4 6.5 6.3 3.4
Gain by all Beam Tilts Tolerance, dB ±0.6 ±0.4 ±1 ±0.7 ±1.2 ±0.5 ±0.4 ±0.4 ±1 ±1
Beamwidth, Vertical Tolerance, degrees ±4.3 ±6 ±3.3 ±2.4 ±1.7 ±0.9 ±5.3 ±3.2 ±8.4 ±3.6

Mechanical Specifications

Wind Loading @ Velocity, frontal 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h)
Wind Speed, maximum 241.402 km/h | 150.000 mph

Packaging and Weights

Width, packed 478 mm | 18.819 in
Depth, packed 464 mm | 18.268 in
Length, packed 894 mm | 35.197 in
Weight, gross 19.2 kg | 42.329 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
