NNV4S6-65S-F4

24-port, 4x 698-896MHz, 8x 1695-2690MHz, 12x 3300-4200MHz, 65°, 2 ft, 4deg fixed tilt for 698-896MHz and 1695-2690MHz, 0deg fixed tilt for 3300-4200MHz

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

General Specifications

Antenna Type	Small Cell
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	12
RF Connector Quantity, mid band	8
RF Connector Quantity, low band	4
RF Connector Quantity, total	24

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	610 mm \| 24.016 in
Net Weight, antenna only	14 kg \| 30.865 lb

Array Layout

Click on image to enlarge.

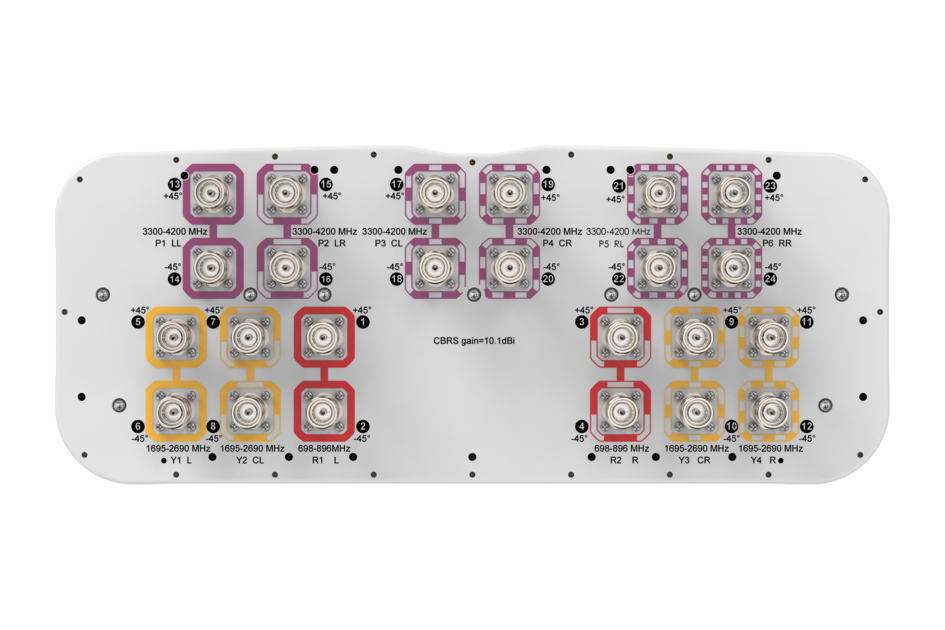

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	698 – 896 MHz \| 1695 – 2690 MHz \| 3300 – 4200 MHz
Polarization	±45°
Total Input Power, maximum	1,000 W @ 50 °C

Electrical Specifications

Frequency Band, MHz	698–806	824–896	1695–1920	1920–2180	2300–2690	3300–3550	3550–3700	3700–4200
Gain, dBi	9.8	10.0	12.8	13.5	14.2	10.5	10.4	10.7
Beamwidth, Horizontal, degrees	82	78	70	65	58	57	63	64
Beamwidth, Vertical, degrees	41	38.1	18.8	17.4	14	33.8	33.3	30.9
Beam Tilt, degrees	4	4	4	4	4	0	0	0
Front-to-Back Ratio at 180°, dB	21	21	23	28	28	25	21	21
Isolation, Cross Polarization, dB	25	25	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-145	-145	-145
Input Power per Port at 50°C, maximum, watts	100	100	100	100	100	50	50	50

Electrical Specifications, BASTA

Frequency Band, MHz	698–806	824–896	1695–1920	1920–2180	2300–2690	3300–3550	3550–3700	3700–4200
Gain by all Beam Tilts, average, dBi	9.5	9.8	12.1	12.9	13.7	10.1	10.1	10.1
Gain by all Beam Tilts Tolerance, dB	±0.5	±0.3	±0.9	±0.9	±0.8	±0.5	±0.5	±0.7
Beamwidth, Vertical Tolerance, degrees	±7.5	±3.3	±2.9	±1.6	±1	±7	±7.9	±8.1
CPR at Boresight, dB	16	16	12	15	19	12	11	12

Mechanical Specifications

Wind Loading @ Velocity, frontal	219.0 N @ 150 km/h (49.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	64.0 N @ 150 km/h (14.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	285.0 N @ 150 km/h (64.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	180.0 N @ 150 km/h (40.5 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h \| 149.750 mph

Packaging and Weights

Width, packed	608 mm \| 23.937 in
Depth, packed	352 mm \| 13.858 in
Length, packed	782 mm \| 30.787 in
Weight, gross	24 kg \| 52.911 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant

General Specifications

Antenna Type	Small Cell
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	12
RF Connector Quantity, mid band	8
RF Connector Quantity, low band	4
RF Connector Quantity, total	24

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	610 mm \| 24.016 in
Net Weight, antenna only	14 kg \| 30.865 lb

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	698 – 896 MHz \| 1695 – 2690 MHz \| 3300 – 4200 MHz
Polarization	±45°
Total Input Power, maximum	1,000 W @ 50 °C

Electrical Specifications

Frequency Band, MHz	698–806	824–896	1695–1920	1920–2180	2300–2690	3300–3550	3550–3700	3700–4200
Gain, dBi	9.8	10.0	12.8	13.5	14.2	10.5	10.4	10.7
Beamwidth, Horizontal, degrees	82	78	70	65	58	57	63	64
Beamwidth, Vertical, degrees	41	38.1	18.8	17.4	14	33.8	33.3	30.9
Beam Tilt, degrees	4	4	4	4	4	0	0	0
Front-to-Back Ratio at 180°, dB	21	21	23	28	28	25	21	21
Isolation, Cross Polarization, dB	25	25	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-145	-145	-145
Input Power per Port at 50°C, maximum, watts	100	100	100	100	100	50	50	50

Electrical Specifications, BASTA

Frequency Band, MHz	698–806	824–896	1695–1920	1920–2180	2300–2690	3300–3550	3550–3700	3700–4200
Gain by all Beam Tilts, average, dBi	9.5	9.8	12.1	12.9	13.7	10.1	10.1	10.1
Gain by all Beam Tilts Tolerance, dB	±0.5	±0.3	±0.9	±0.9	±0.8	±0.5	±0.5	±0.7
Beamwidth, Vertical Tolerance, degrees	±7.5	±3.3	±2.9	±1.6	±1	±7	±7.9	±8.1
CPR at Boresight, dB	16	16	12	15	19	12	11	12

Mechanical Specifications

Wind Loading @ Velocity, frontal	219.0 N @ 150 km/h (49.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	64.0 N @ 150 km/h (14.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	285.0 N @ 150 km/h (64.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	180.0 N @ 150 km/h (40.5 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h \| 149.750 mph

Packaging and Weights

Width, packed	608 mm \| 23.937 in
Depth, packed	352 mm \| 13.858 in
Length, packed	782 mm \| 30.787 in
Weight, gross	24 kg \| 52.911 lb

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
