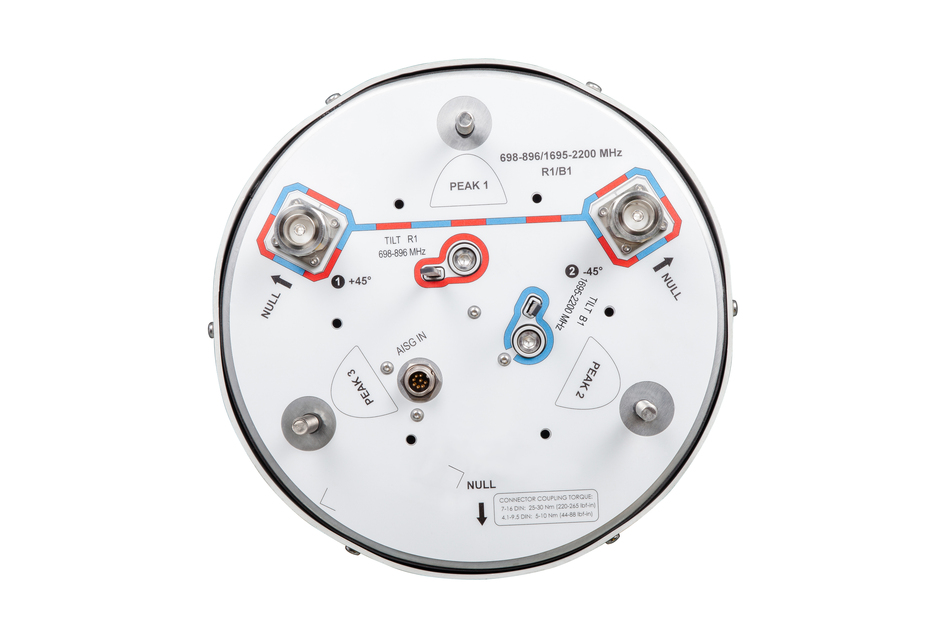

NH360QM-DG-2XR
2-port small cell antenna, 2x (698-896 and 1695–2200 MHz), 360° HPBW, 2x RET with manual override, internal diplexer and active GPS L1 band antenna

NH360QM-D-2XR

2-port small cell antenna, 2x (698-896 and 1695–2200 MHz), 360° HPBW, 2x RET with manual override, internal diplexer

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

General Specifications

Antenna Type	Small Cell
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	ASA, UV stabilized
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, diplexed low and high bands	2
RF Connector Quantity, total	2

RET Interface	8-pin DIN Male
RET Interface, quantity	1 male
Input Voltage	10–30 Vdc
Internal RET	High band (1) \| Low band (1)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Multi-RET)

Length	982 mm \| 38.661 in
Net Weight, without mounting kit	15.3 kg \| 33.731 lb
Outer Diameter	305 mm \| 12.008 in

Frequency Band, MHz	698–806	806–896	1695–1880	1850–1990	1920–2200
Gain, dBi	6.1	7.1	9.7	9.9	9.9
Beamwidth, Horizontal, degrees	360	360	360	360	360
Beamwidth, Vertical, degrees	28.6	25.4	11.2	10.6	10.1
Beam Tilt, degrees	0–20	0–20	0–14	0–14	0–14
USLS (First Lobe), dB	16	15	14	13	13
Isolation, Cross Polarization, dB	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153
Input Power per Port, maximum, watts	125	125	125	125	125

Frequency Band, MHz	698–806	806–896	1695–1880	1850–1990	1920–2200
Gain by all Beam Tilts, average, dBi	5.4	6.3	9.3	9.4	9.4
Gain by all Beam Tilts Tolerance, dB	±1	±0.7	±0.5	±0.7	±0.7
Gain by Beam Tilt, average, dBi	0 ° \| 5.1 10 ° \| 5.4 20 ° \| 5.6	0 ° \| 6.3 10 ° \| 6.3 20 ° \| 6.0	0 ° \| 9.2 7 ° \| 9.3 14 ° \| 9.2	0 ° \| 9.3 7 ° \| 9.5 14 ° \| 9.1	0 ° \| 9.4 7 ° \| 9.6 14 ° \| 9.1
Beamwidth, Vertical Tolerance, degrees	±3.7	±3.2	±0.9	±1.1	±1.1
USLS, beampeak to 20° above beampeak, dB			13	13	13

Wind Loading @ Velocity, frontal	167.0 N @ 150 km/h (37.5 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	167.0 N @ 150 km/h (37.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	167.0 N @ 150 km/h (37.5 lbf @ 150 km/h)
Wind Speed, maximum	200 km/h \| 124.274 mph

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant/Exempted
