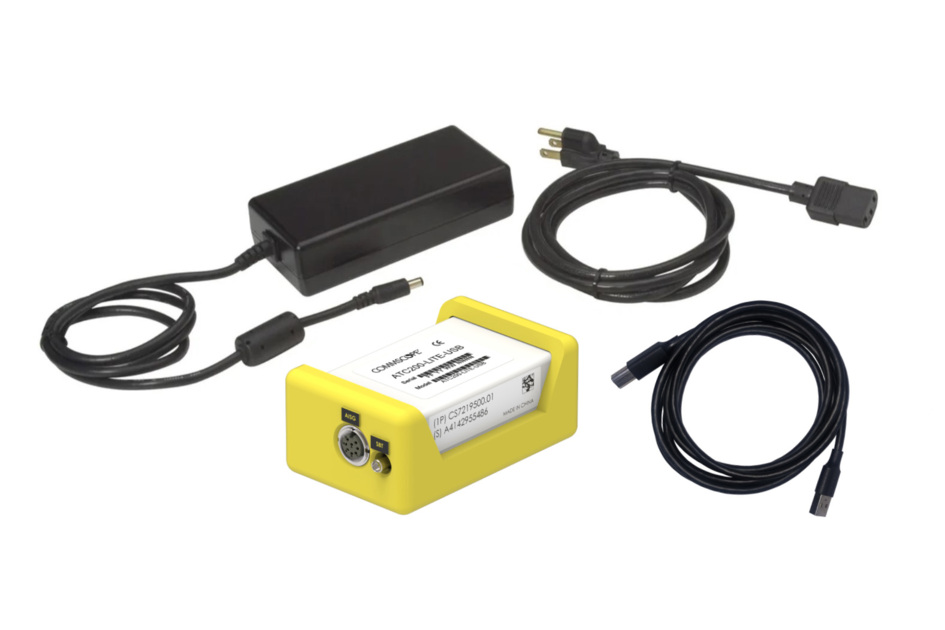

ATC200-LITE-USB
Portable Controller
Features and Benefits
- Carried from site to site for RET antenna setup and optimization
- Supports up to 32 RET actuators operating in AISG 1.1 or 2.0 modes
- LED display indicates the presence of input power, output power, and data communication
- Equipped with USB and serial connectors
- Power supply efficiency is Energy Star® Level IV rated
Specifications
Product Classification
| Product Type | RET controller |
General Specifications
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Auxiliary Interface | USB |
| Color | Gray | Yellow |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 127 mm | 5 in |
| Depth | 76.2 mm | 3 in |
Electrical Specifications
| Input Voltage | 110/240 Vac |
| Output Current at Voltage, continuous | 3.0 A @ 24 V |
| Output Current at Voltage, maximum | 3.0 A @ 24 V |
| Output Voltage, typical | 24 V |
| Electrical Safety Standard | CB | CE | IEC 60950-1 |
| Interface Protocol Signal | Data | dc |
| Power Supply | dc Jack |
| Protocol | AISG 1.1 | AISG 2.0 |
Material Specifications
| Material Type | Aluminum |
Environmental Specifications
| Operating Temperature | -40 °C to +55 °C (-40 °F to +131 °F) |
| Relative Humidity | Up to 95%, non-condensing |
Packaging and Weights
| Included | Control unit | Power supply | Site configuration worksheet | US adapter | USB cable |
| Weight, net | 0.4 kg | 0.882 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | RET controller |
General Specifications
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Auxiliary Interface | USB |
| Color | Gray | Yellow |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 127 mm | 5 in |
| Depth | 76.2 mm | 3 in |
Electrical Specifications
| Input Voltage | 110/240 Vac |
| Output Current at Voltage, continuous | 3.0 A @ 24 V |
| Output Current at Voltage, maximum | 3.0 A @ 24 V |
| Output Voltage, typical | 24 V |
| Electrical Safety Standard | CB | CE | IEC 60950-1 |
| Interface Protocol Signal | Data | dc |
| Power Supply | dc Jack |
| Protocol | AISG 1.1 | AISG 2.0 |
Material Specifications
| Material Type | Aluminum |
Environmental Specifications
| Operating Temperature | -40 °C to +55 °C (-40 °F to +131 °F) |
| Relative Humidity | Up to 95%, non-condensing |
Packaging and Weights
| Included | Control unit | Power supply | Site configuration worksheet | US adapter | USB cable |
| Weight, net | 0.4 kg | 0.882 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
