2SS-33A-R1
8-Port multibeam antenna ,8x 3100-4200 MHz , 4x 33° HPBW, 1x RET
Features and Benefits
- Enhances network capacity and spectrum utilization when used in six sector applications
- Reduces antenna count to minimize Cap-Ex and Op-Ex costs – 3 antennas required for 6 sector configurations
- Future proof-covers bands 42,43,48 plus C-Band and future CBRS expansions
Specifications
General Specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | AISG1 8-pin DIN Female | AISG1 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 181 mm | 7.126 in |
| Length | 1100 mm | 43.307 in |
| Net Weight, without mounting kit | 12 kg | 26.455 lb |
Array Layout
| Click on image to enlarge. |

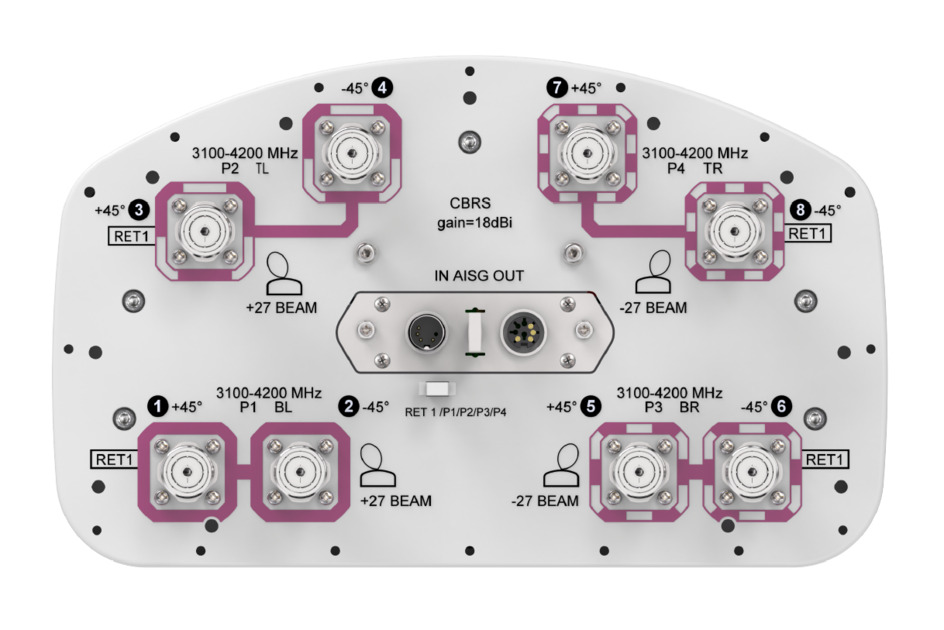

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3100 – 4200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 640 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 3100–3550 | 3550–3700 | 3700–4200 |
| Gain, dBi | 17.5 | 17.7 | 17.8 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 38 | 36 | 34 |
| Beamwidth, Vertical, degrees | 9.9 | 9.1 | 8.5 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 24 | 20 |
| Front-to-Back Ratio at 180°, dB | 32 | 32 | 31 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 80 | 80 | 80 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 3100–3550 | 3550–3700 | 3700–4200 |
| Gain by all Beam Tilts, average, dBi | 17.1 | 17.3 | 17.1 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.5 | ±1 |
| Beamwidth, Horizontal Tolerance, degrees | ±2.7 | ±2.5 | ±3 |
| Beamwidth, Vertical Tolerance, degrees | ±0.6 | ±0.4 | ±0.6 |
| USLS, beampeak to 20° above beampeak, dB | 17 | 17 | 14 |
| Front-to-Back Total Power at 180° ± 30°, dB | 26 | 25 | 25 |
| CPR at Boresight, dB | 17 | 19 | 23 |
| CPR at 10 dB Horizontal Beamwidth, dB | 8 | 10 | 10 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 154.0 N @ 150 km/h (34.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 125.0 N @ 150 km/h (28.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 297.0 N @ 150 km/h (66.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 157.0 N @ 150 km/h (35.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h | 149.750 mph |
Packaging and Weights
| Width, packed | 441 mm | 17.362 in |
| Depth, packed | 337 mm | 13.268 in |
| Length, packed | 1245 mm | 49.016 in |
| Weight, gross | 23 kg | 50.706 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
General Specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | AISG1 8-pin DIN Female | AISG1 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 181 mm | 7.126 in |
| Length | 1100 mm | 43.307 in |
| Net Weight, without mounting kit | 12 kg | 26.455 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3100 – 4200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 640 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 3100–3550 | 3550–3700 | 3700–4200 |
| Gain, dBi | 17.5 | 17.7 | 17.8 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 38 | 36 | 34 |
| Beamwidth, Vertical, degrees | 9.9 | 9.1 | 8.5 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 24 | 20 |
| Front-to-Back Ratio at 180°, dB | 32 | 32 | 31 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 80 | 80 | 80 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 3100–3550 | 3550–3700 | 3700–4200 |
| Gain by all Beam Tilts, average, dBi | 17.1 | 17.3 | 17.1 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.5 | ±1 |
| Beamwidth, Horizontal Tolerance, degrees | ±2.7 | ±2.5 | ±3 |
| Beamwidth, Vertical Tolerance, degrees | ±0.6 | ±0.4 | ±0.6 |
| USLS, beampeak to 20° above beampeak, dB | 17 | 17 | 14 |
| Front-to-Back Total Power at 180° ± 30°, dB | 26 | 25 | 25 |
| CPR at Boresight, dB | 17 | 19 | 23 |
| CPR at 10 dB Horizontal Beamwidth, dB | 8 | 10 | 10 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 154.0 N @ 150 km/h (34.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 125.0 N @ 150 km/h (28.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 297.0 N @ 150 km/h (66.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 157.0 N @ 150 km/h (35.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h | 149.750 mph |
Packaging and Weights
| Width, packed | 441 mm | 17.362 in |
| Depth, packed | 337 mm | 13.268 in |
| Length, packed | 1245 mm | 49.016 in |
| Weight, gross | 23 kg | 50.706 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
