2P-2L-C1-V2

2-port sector antenna, 2x 694–960MHz, 65°HPBW, 1x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

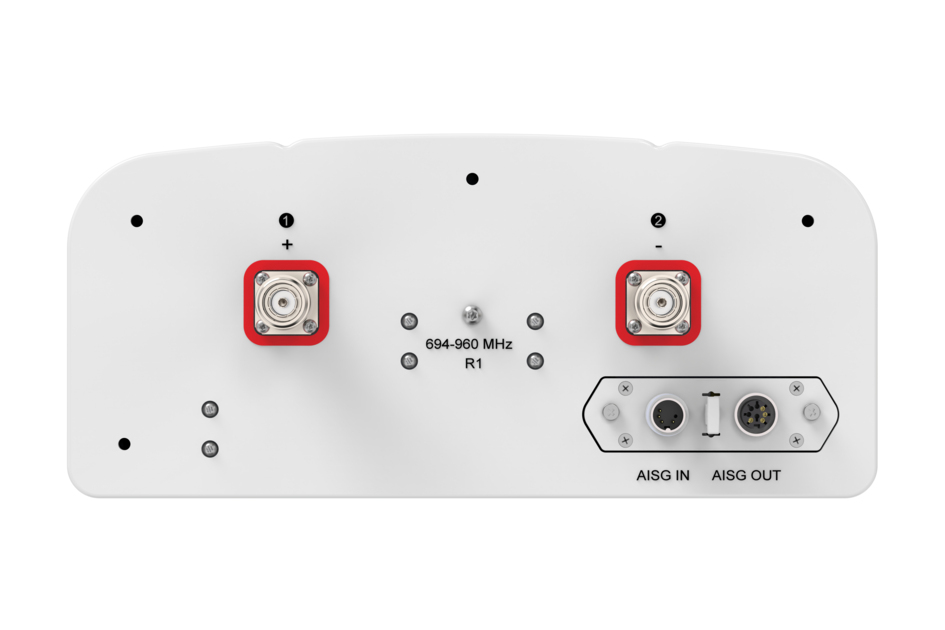

2P-2L-C1-V2 Top Line Image
Features and Benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector

General Specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, low band 2
RF Connector Quantity, total 2

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 320 mm | 12.598 in
Depth 140 mm | 5.512 in
Length 2500 mm | 98.425 in
Net Weight, without mounting kit 21.3 kg | 46.958 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz
Polarization ±45°
Total Input Power, maximum 500 W

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960
Gain, dBi 16.5 17.2 17.4
Beamwidth, Horizontal, degrees 69 66 64
Beamwidth, Vertical, degrees 8.9 7.8 7
Beam Tilt, degrees 0–10 0–10 0–10
USLS (First Lobe), dB 21 21 18
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 31 32 32
Isolation, Cross Polarization, dB 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153
Input Power per Port, maximum, watts 300 300 300

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960
Gain by all Beam Tilts, average, dBi 16.2 17.0 17.1
Gain by all Beam Tilts Tolerance, dB ±0.5 ±0.3 ±0.4
Beamwidth, Horizontal Tolerance, degrees ±1.6 ±2 ±1
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.5 ±0.4
Front-to-Back Total Power at 180° ± 30°, dB 25 27 26
CPR at Boresight, dB 22 25 27
CPR at Sector, dB 13 13 11

Mechanical Specifications

Wind Loading @ Velocity, frontal 418.0 N @ 150 km/h (94.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 378.0 N @ 150 km/h (85.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 915.0 N @ 150 km/h (205.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h | 149.750 mph

Packaging and Weights

Width, packed 425 mm | 16.732 in
Depth, packed 235 mm | 9.252 in
Length, packed 2780 mm | 109.449 in
Weight, gross 30.9 kg | 68.123 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
