2P-2L-C1

2-port sector antenna, 2x 694–960 MHz, 65° HPBW, 1x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Utilizes RET-PMOD-A20-1A01

General Specifications

Antenna Type Sector
Band Single band
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, low band 2
RF Connector Quantity, total 2

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 2x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 10 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 320 mm | 12.598 in
Depth 140 mm | 5.512 in
Length 2500 mm | 98.425 in
Net Weight, without mounting kit 21 kg | 46.297 lb

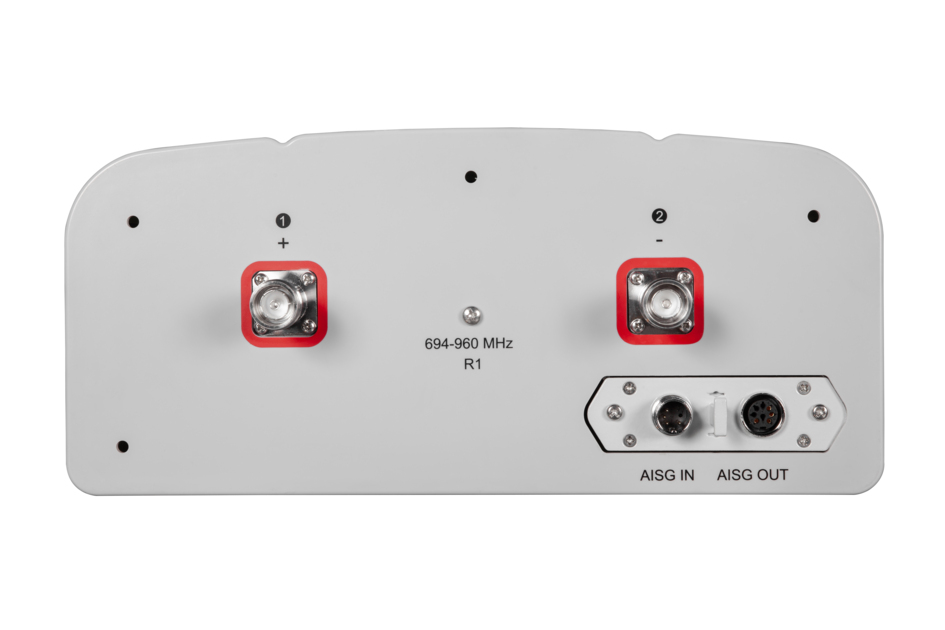

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz
Polarization ±45°
Total Input Power, maximum 500 W

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960
Gain, dBi 16.8 17.4 17.8
Beamwidth, Horizontal, degrees 69 66 63
Beamwidth, Vertical, degrees 8.9 7.8 7.2
Beam Tilt, degrees 3–12 3–12 3–12
USLS (First Lobe), dB 17 20 18
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 31 33 31
Isolation, Cross Polarization, dB 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153
Input Power per Port, maximum, watts 300 300 300

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960
Gain by all Beam Tilts, average, dBi 16.5 17.2 17.6
Gain by all Beam Tilts Tolerance, dB ±0.6 ±0.4 ±0.2
Beamwidth, Horizontal Tolerance, degrees ±2 ±1.7 ±1.3
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.5 ±0.3
USLS, beampeak to 20° above beampeak, dB 16 14 15
Front-to-Back Total Power at 180° ± 30°, dB 25 27 27
CPR at Boresight, dB 23 23 30
CPR at Sector, dB 14 8 12

Mechanical Specifications

Wind Loading @ Velocity, frontal 418.0 N @ 150 km/h (94.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 378.0 N @ 150 km/h (85.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 915.0 N @ 150 km/h (205.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h | 149.750 mph

Packaging and Weights

Width, packed 425 mm | 16.732 in
Depth, packed 235 mm | 9.252 in
Length, packed 2780 mm | 109.449 in
Weight, gross 30.6 kg | 67.461 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
UK-ROHS Compliant

General Specifications

Antenna Type Sector
Band Single band
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, low band 2
RF Connector Quantity, total 2

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 2x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 10 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 320 mm | 12.598 in
Depth 140 mm | 5.512 in
Length 2500 mm | 98.425 in
Net Weight, without mounting kit 21 kg | 46.297 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz
Polarization ±45°
Total Input Power, maximum 500 W

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960
Gain, dBi 16.8 17.4 17.8
Beamwidth, Horizontal, degrees 69 66 63
Beamwidth, Vertical, degrees 8.9 7.8 7.2
Beam Tilt, degrees 3–12 3–12 3–12
USLS (First Lobe), dB 17 20 18
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 31 33 31
Isolation, Cross Polarization, dB 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153
Input Power per Port, maximum, watts 300 300 300

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960
Gain by all Beam Tilts, average, dBi 16.5 17.2 17.6
Gain by all Beam Tilts Tolerance, dB ±0.6 ±0.4 ±0.2
Beamwidth, Horizontal Tolerance, degrees ±2 ±1.7 ±1.3
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.5 ±0.3
USLS, beampeak to 20° above beampeak, dB 16 14 15
Front-to-Back Total Power at 180° ± 30°, dB 25 27 27
CPR at Boresight, dB 23 23 30
CPR at Sector, dB 14 8 12

Mechanical Specifications

Wind Loading @ Velocity, frontal 418.0 N @ 150 km/h (94.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 378.0 N @ 150 km/h (85.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 915.0 N @ 150 km/h (205.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h | 149.750 mph

Packaging and Weights

Width, packed 425 mm | 16.732 in
Depth, packed 235 mm | 9.252 in
Length, packed 2780 mm | 109.449 in
Weight, gross 30.6 kg | 67.461 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
UK-ROHS Compliant
