619625-000 | GELSNAP-A-10/5-80-INT

  • Available in:
  • EMEA

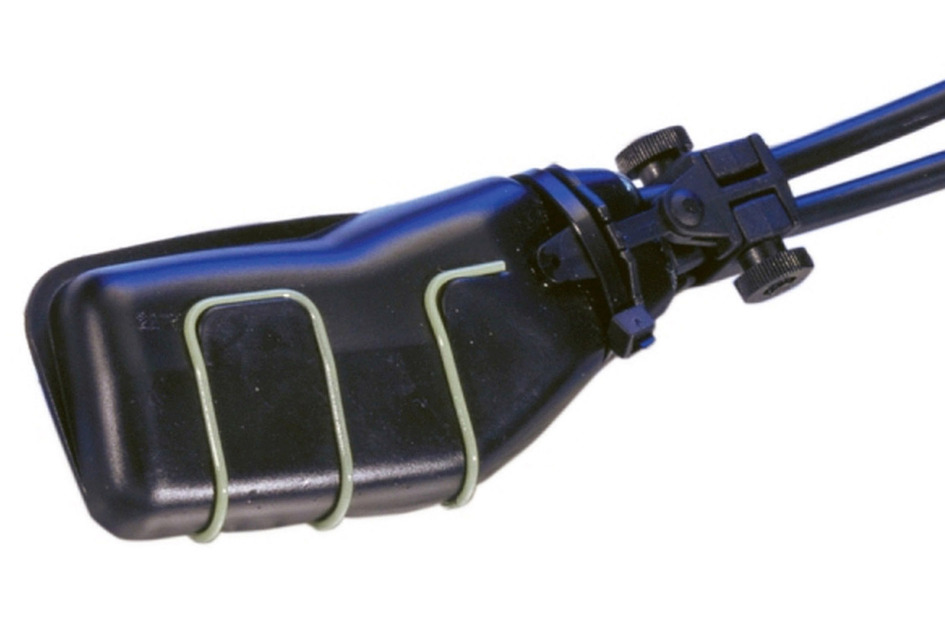

GELSNAP Copper Closure, unpressurized, gel sealed, butt, for up to 3 pair splices

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Prevents water ingress by use of non-flowing gel under permanent compression
  • Robust and reliable under a wide variety of environmental conditions
  • Butt, in-line, and branch configurations with many connector types are possible

Product Classification

Regional Availability EMEA
Product Type Gel filled closure
Product Series GELSNAP

General Specifications

Cable Sealing Type Gel filled
Closure Style Single-ended
Color Black
Splicing Capacity, maximum 3

Dimensions

Height 33 mm | 1.299 in
Width 64 mm | 2.52 in
Length 155 mm | 6.102 in
Single Cable Diameter, maximum 10 mm | 0.394 in
Single Cable Diameter, minimum 5 mm | 0.197 in
Sheath Opening, nominal 80 mm | 3.15 in

Dimension Drawing

Click on image to enlarge.

Environmental Specifications

Environmental Space Aerial | Buried

Packaging and Weights

Included Gel compression springs | Gel-filled half-shells | Installation instruction | Strain relief accessories | Tie wraps
Packaging quantity 1
Packaging Type Bag | Carton

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
TL 9000:2016 (R6) Compliant to this quality management practice
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability EMEA
Product Type Gel filled closure
Product Series GELSNAP

General Specifications

Cable Sealing Type Gel filled
Closure Style Single-ended
Color Black
Splicing Capacity, maximum 3

Dimensions

Height 33 mm | 1.299 in
Width 64 mm | 2.52 in
Length 155 mm | 6.102 in
Single Cable Diameter, maximum 10 mm | 0.394 in
Single Cable Diameter, minimum 5 mm | 0.197 in
Sheath Opening, nominal 80 mm | 3.15 in

Environmental Specifications

Environmental Space Aerial | Buried

Packaging and Weights

Included Gel compression springs | Gel-filled half-shells | Installation instruction | Strain relief accessories | Tie wraps
Packaging quantity 1
Packaging Type Bag | Carton
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
TL 9000:2016 (R6) Compliant to this quality management practice
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
