DSC650

Base Product

Available in:
Latin America
North America

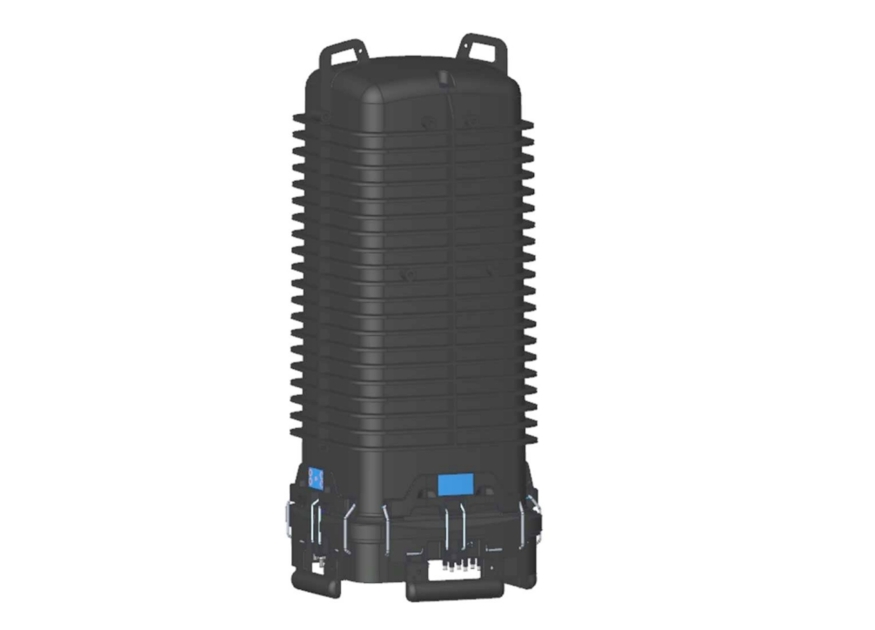

NOVUX™ DSC650 Fiber Optic Splice Closures

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of DSC650 by selecting options

	Product	Fiber Storage Basket Type	Ground Feed-through	Splice Tray Included, quantity	Splice Tray Type Included	Regional Availability	Product Brand	Product Series	Product Type	Cable Ports Quantity, total	Cable Sealing Type	Closure Sealing Type	Closure Style	Flash Test Valve	Splicing Type, Supported	Main Cable Diameter, maximum	Splicing Capacity, Single Fusion, maximum	Splicing Capacity, Mass Fusion, maximum
	760251859 \| DSC650-NGB-NT-0-S12V NOVUX™ DSC650 Fiber Optic Splice Closure, no tray	No basket	None	0	No trays	Latin America \| North America	FOSC®	FOSC DSC650	Single-ended \| rectangular fiber closure	4 multi-out ports (16 cables)	Compressed gel	Captured bolts \| Over-centered latches with rubber gasket	Single-ended	Pre-installed	Mass fusion \| Single fusion	40 mm \| 1.575 in	480	864	Specifications

Features and Benefits

Single-ended base with four-latches dome design and reliable cable attachment system
There are 3 cable attachment assembly’s available: 2 for use with the small gel seal blocks/entrance ports and 1 for use with the large gel seal blocks/entrance ports
Fully removable base for easy cable access during installation and provisioning
Superior gel sealing technology incorporated in interchangeable and fully wrap around gel segments
Compatible with a wide range of fiber cable sizes and types

Specifications

Product Classification

Regional Availability	Latin America \| North America
Product Type	Single-ended, rectangular fiber closure
Product Brand	FOSC®
Product Series	FOSC DSC650

General Specifications

Cable Entry Drop Port Style	Gel block
Cable Entry Main Port Style	Gel block
Cable Ports Quantity, total	4 multi-out ports (16 cables)
Cable Sealing Type	Compressed gel
Closure Sealing Type	Captured bolts \| Over-centered latches with rubber gasket
Closure Style	Single-ended
Color	Black
Mounting	Pole \| Strand \| Wall
Network Area Type	Feeder \| Trunk
Splicing Type, Supported	Mass fusion \| Single fusion

Dimensions

Height	345 mm \| 13.583 in
Width	345 mm \| 13.583 in
Length	1050 mm \| 41.339 in
Main Cable Diameter, maximum	40 mm \| 1.575 in

Dimension Drawing

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Material Specifications

Material Type

Rugged polymer

Environmental Specifications

Environmental Space	Below ground \| Buried
Qualification Standards	Telcordia GR-771-CORE, 20 ft waterhead
Water Resistance	Flash test valve at 5 psi (40 kPa)

Packaging and Weights

Packaging quantity	1
Packaging Type	Box \| Carton

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
