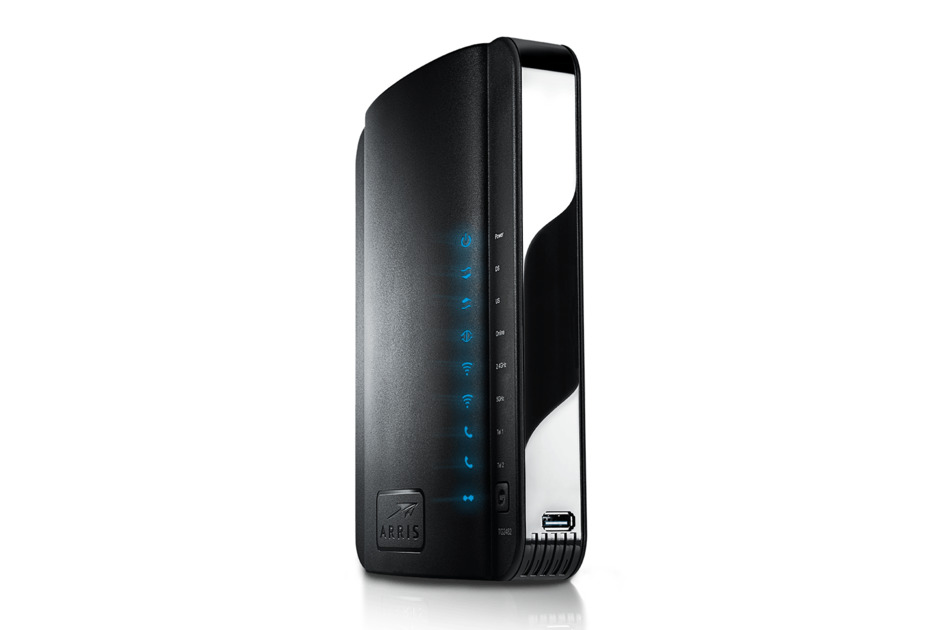

TG2482 | Touchstone® TG2482 Cable Voice Gateway

  • Available in:
  • EMEA
  • Latin America

24x8 DOCSIS® 3.0 Cable Voice Gateway with dual-band 802.11ac Wi-Fi

Contact Us for a Quote
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
The TG2482 is a high-performance, high-quality home gateway for the delivery of high-speed broadband, VoIP telephony, and whole-home Wi-Fi. This feature-packed unit is intended to serve as the hub of the subscriber's network, connecting all IP-capable devices (Internet, Data, Voice, and Video) throughout the customer's premises. Featuring 24x8 DOCSIS 3.0 channel bonding and the superior performance of 4x4 802.11ac Dual-Band Wi-Fi, Ethernet, and USB interfaces.

The TG2482 is designed to minimize support costs with multiple provisioning and remote management methods (SNMP, Configuration File, Remote WebGUI access, TFTP, and TR-069/181). Multiple remote access levels (User, Technician, and MSO) also allow more ease and flexibility for manual configuration and control.

The TG2482 is capable of being part of a HomeAssure® Managed Wi-Fi solution. When used with Wi-Fi extenders, HomeAssure® delivers optimized, high-performance Wi-Fi to every corner of the home, while offering ease of use for the consumer and reduced OpEx costs for the service provider.
  • 24x8 Channel Bonding
  • 1Gbps Downstream support with internal Spectrum Analyzer
  • DOCSIS® 3.0 compliant design
  • Full Capture Bandwidth Tuner
  • Multi Processor Technology with a 1.2GHz Application Processor
  • 4 port Gigabit Ethernet Router
  • 3x3 2.4GHz 802.11n
  • 4x4 5GHz 802.11ac Wave 2
  • MU-MiMO and Beamforming Support
  • HomeAssure Managed Wi-Fi capable for whole-home Wi-Fi coverage and performance

Product Classification

Regional Availability EMEA | Latin America
Product Type Cable voice gateway

General Specifications

Access Technology DOCSIS 3.0 | EuroDOCSIS 3.0
Channel Bonding Up to 24x8 SC-QAM
Ethernet Ports 4 x GigE
Interfaces 2 lines, RJ14 (“Line 1/2"), RJ11 (“Line 2”) | 4x RJ45 (10/100/1000 Base-T) | ‘F’ type connector
RF Downstream Frequency Range 108-1002 MHz
RF Downstream Bonded Channels, quantity Up to 24
RF Downstream Input Sensitivity Level -15 dBmV to 15 dBmV
RF Downstream Data Rate Up to 960 Mb/s
RF Upstream Frequency Range 5-85 MHz
RF Upstream Bonded Channels, quantity Up to 8
RF Upstream Output Level 54 dBmV (64 QAM, 4-8 upstreams) | 56 dBmV (SCDMA, single upstream) | 57 dBmV (64 QAM, single upstream) | 58 dBmV (16 QAM, single upstream)
RF Upstream Data Rate Up to 240 Mb/s
USB USB 2.0
Voice Yes
Voice Ports, quantity 2
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac Wave2
Wi-Fi Band 2.4 GHz | 5 GHz
Wi-Fi Interface Standard at 2.4 GHz 3x3, 802.11n
Wi-Fi Interface Standard at 5 GHz 4x4, 802.11ac

Dimensions

Height 233.68 mm | 9.2 in
Width 149.86 mm | 5.9 in
Length 63.5 mm | 2.5 in

Electrical Specifications

Input Voltage 12 Vdc

Environmental Specifications

Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)

Packaging and Weights

Weight, net 1.089 kg | 2.4 lb

Product Classification

Regional Availability EMEA | Latin America
Product Type Cable voice gateway

General Specifications

Access Technology DOCSIS 3.0 | EuroDOCSIS 3.0
Channel Bonding Up to 24x8 SC-QAM
Ethernet Ports 4 x GigE
Interfaces 2 lines, RJ14 (“Line 1/2"), RJ11 (“Line 2”) | 4x RJ45 (10/100/1000 Base-T) | ‘F’ type connector
RF Downstream Frequency Range 108-1002 MHz
RF Downstream Bonded Channels, quantity Up to 24
RF Downstream Input Sensitivity Level -15 dBmV to 15 dBmV
RF Downstream Data Rate Up to 960 Mb/s
RF Upstream Frequency Range 5-85 MHz
RF Upstream Bonded Channels, quantity Up to 8
RF Upstream Output Level 54 dBmV (64 QAM, 4-8 upstreams) | 56 dBmV (SCDMA, single upstream) | 57 dBmV (64 QAM, single upstream) | 58 dBmV (16 QAM, single upstream)
RF Upstream Data Rate Up to 240 Mb/s
USB USB 2.0
Voice Yes
Voice Ports, quantity 2
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac Wave2
Wi-Fi Band 2.4 GHz | 5 GHz
Wi-Fi Interface Standard at 2.4 GHz 3x3, 802.11n
Wi-Fi Interface Standard at 5 GHz 4x4, 802.11ac

Dimensions

Height 233.68 mm | 9.2 in
Width 149.86 mm | 5.9 in
Length 63.5 mm | 2.5 in

Electrical Specifications

Input Voltage 12 Vdc

Environmental Specifications

Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)

Packaging and Weights

Weight, net 1.089 kg | 2.4 lb
