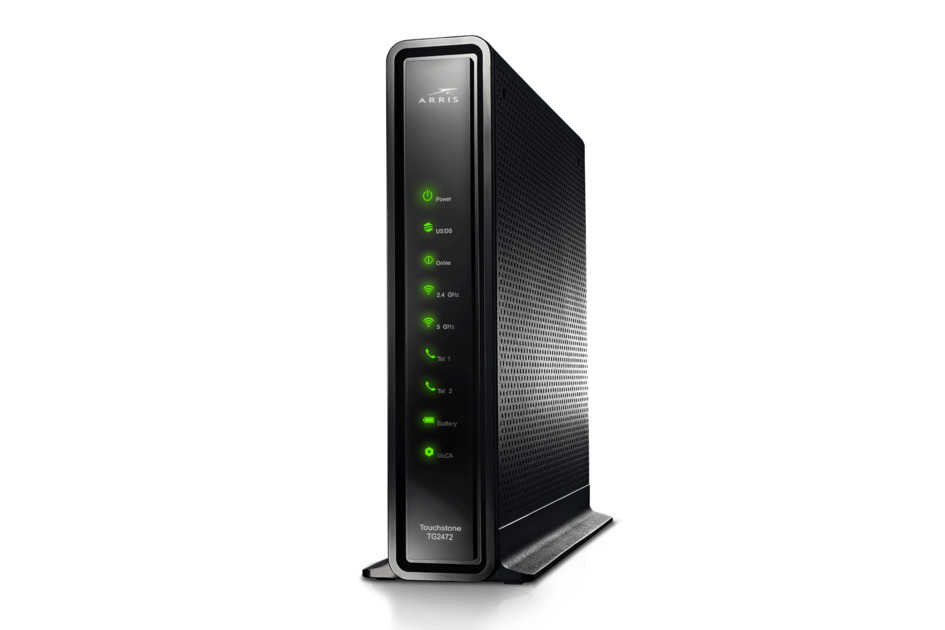

TG2472 | Touchstone® TG2472 Cable Voice Gateway

Available in:
Latin America
North America

24x8 DOCSIS® 3.0 Cable Voice Gateway with 802.11ac Wi-Fi & MoCA®2.0

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

The Touchstone TG2472 is a DOCSIS 3.0 home telephony gateway supporting 24 x 8 channel bonding for up to 960Mbps of broadband data. It combines two FXS ports of carrier-grade VoIP, a 4-port gigabit router, MoCA 2.0 over coax, and a dual band 802.11ac wireless access point with battery back-up into a single integrated device.

The TG2472 serves as the hub of service delivery in the subscriber’s home providing high-speed data, voice and IP video to wired and wireless connected devices.

Supports coaxial data routing in the home via the MoCA 2.0 interface
Allows custom designed setups to be applied to monitor the end user more efficiently with multiple provisioning methods (SNMP, configuration file, remote web GUI access, TFTP, and TR-069)
Flexibility of configuration and control with multiple local and remote access levels (user, admin, etc.)
Advanced Feature support with Guest SSID, DLNA, and File Sharing
Battery support meets the new FCC Requirements for 8 hour hold up time

Specifications

Product Classification

Regional Availability	Latin America \| North America
Product Type	Cable voice gateway

General Specifications

Access Technology	DOCSIS 3.0
Channel Bonding	Up to 24x8 SC-QAM
Ethernet Ports	4 x GigE
Interfaces	2 lines, RJ14 (“Line 1/2"), RJ11 (“Line 2”) \| 4x RJ45 (10/100/1000 Base-T) \| ‘F’ type connector
MoCA	MoCA 2.0
RF Downstream Frequency Range	108-1002 MHz
RF Downstream Bonded Channels, quantity	Up to 24
RF Downstream Input Sensitivity Level	-15 dBmV to 15 dBmV
RF Downstream Data Rate	Up to 960 Mb/s
RF Upstream Frequency Range	5-42 MHz \| 5-85 MHz
RF Upstream Bonded Channels, quantity	Up to 8
RF Upstream Output Level	54 dBmV (64 QAM, 4-8 upstreams) \| 56 dBmV (SCDMA, single upstream) \| 57 dBmV (64 QAM, single upstream) \| 58 dBmV (16 QAM, single upstream)
RF Upstream Data Rate	Up to 240 Mb/s
Software	DHCP \| Dual Stack IPv4/IPv6 Home Router \| L2TP \| NAT \| PacketCable 1.0 \| PacketCable 1.5 \| PacketCable 2.0 \| SIP and NCS \| Static and Dynamic IP \| VLANs and RIP
USB	USB 2.0
Voice	Yes
Voice Ports, quantity	2
Wi-Fi Interface Standard	IEEE 802.11a/b/g/n/ac
Wi-Fi Band	2.4 GHz \| 5 GHz
Wi-Fi Interface Standard at 2.4 GHz	3x3, 802.11n
Wi-Fi Interface Standard at 5 GHz	3x3, 802.11ac

Dimensions

Height	256.54 mm \| 10.1 in
Width	261.62 mm \| 10.3 in
Length	82.55 mm \| 3.25 in

Electrical Specifications

Input Voltage

115 Vac

Environmental Specifications

Operating Temperature

0 °C to +50 °C (+32 °F to +122 °F)

Packaging and Weights

Weight, net

1.134 kg | 2.5 lb
