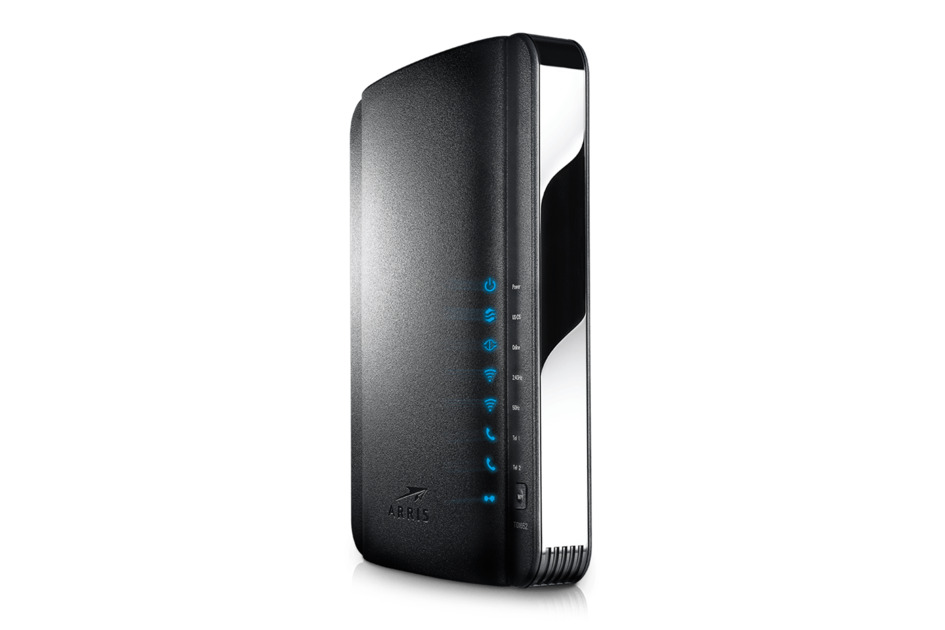

TG1652 | Touchstone® TG1652 Cable Voice Gateway

Available in:
EMEA
Latin America
North America

16x4 DOCSIS® 3.0 Cable Voice Gateway with 802.11ac Wi-Fi

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

The Touchstone TG1652 is an economical DOCSIS® or EuroDOCSIS® 3.0 home telephony gateway supporting 16 x 4 channel bonding for up to 640Mbps of broadband data. It combines two FXS ports of carrier-grade VoIP, a 4-port gigabit router and a dual band 802.11ac wireless access point with optional battery back-up into a single integrated device.

The TG1652 serves as the hub of service delivery in the subscriber’s home; providing high-speed data, voice and IP video to wired and wireless connected devices.

Allows custom designed setups to be applied to monitor the end user more efficiently with multiple provisioning methods (SNMP, configuration file, remote web GUI access, TFTP, and TR-069)
Flexibility of configuration and control with multiple local and remote access levels (user, admin, etc.)
Firmware features support DLNA/File Sharing, Guest SSID, SoftGre Hotspot
Battery model meets new FCC Requirements for 8 hour hold up time

Specifications

Product Classification

Regional Availability	EMEA \| Latin America \| North America
Product Type	Cable voice gateway

General Specifications

Access Technology	DOCSIS 3.0 \| EuroDOCSIS 3.0
Channel Bonding	Up to 16x4 SC-QAM
Ethernet Ports	4 x GigE
Interfaces	2x RJ11 \| 4x RJ45 (10/100/1000 Base-T) \| ‘F’ type connector
RF Downstream Frequency Range	108-1002 MHz
RF Downstream Bonded Channels, quantity	Up to 16
RF Downstream Input Sensitivity Level	-15 dBmV to +15 dBmV (DOCSIS) \| -17 dBmV to +15 dBmV (EuroDOCSIS)
RF Downstream Data Rate	Up to 640 Mb/s
RF Upstream Frequency Range	5-42 MHz \| 5-85 MHz
RF Upstream Bonded Channels, quantity	Up to 4
RF Upstream Output Level	54 dBmV (64 QAM, 4 upstreams) \| 57 dBmV (64 QAM, single upstream) \| 58 dBmV (16 QAM, single upstream)
RF Upstream Data Rate	Up to 120 Mb/s
USB	USB 2.0
Voice	Yes
Voice Ports, quantity	2
Wi-Fi Interface Standard	IEEE 802.11a/b/g/n/ac
Wi-Fi Band	2.4 GHz \| 5 GHz
Wi-Fi Interface Standard at 2.4 GHz	2x2, 802.11n
Wi-Fi Interface Standard at 5 GHz	2x2, 802.11ac

Dimensions

Height	233.68 mm \| 9.2 in
Width	187.96 mm \| 7.4 in
Length	55.88 mm \| 2.2 in

Electrical Specifications

Input Voltage

115–230 Vac

Environmental Specifications

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Packaging and Weights

Weight, net

0.68 kg | 1.5 lb
